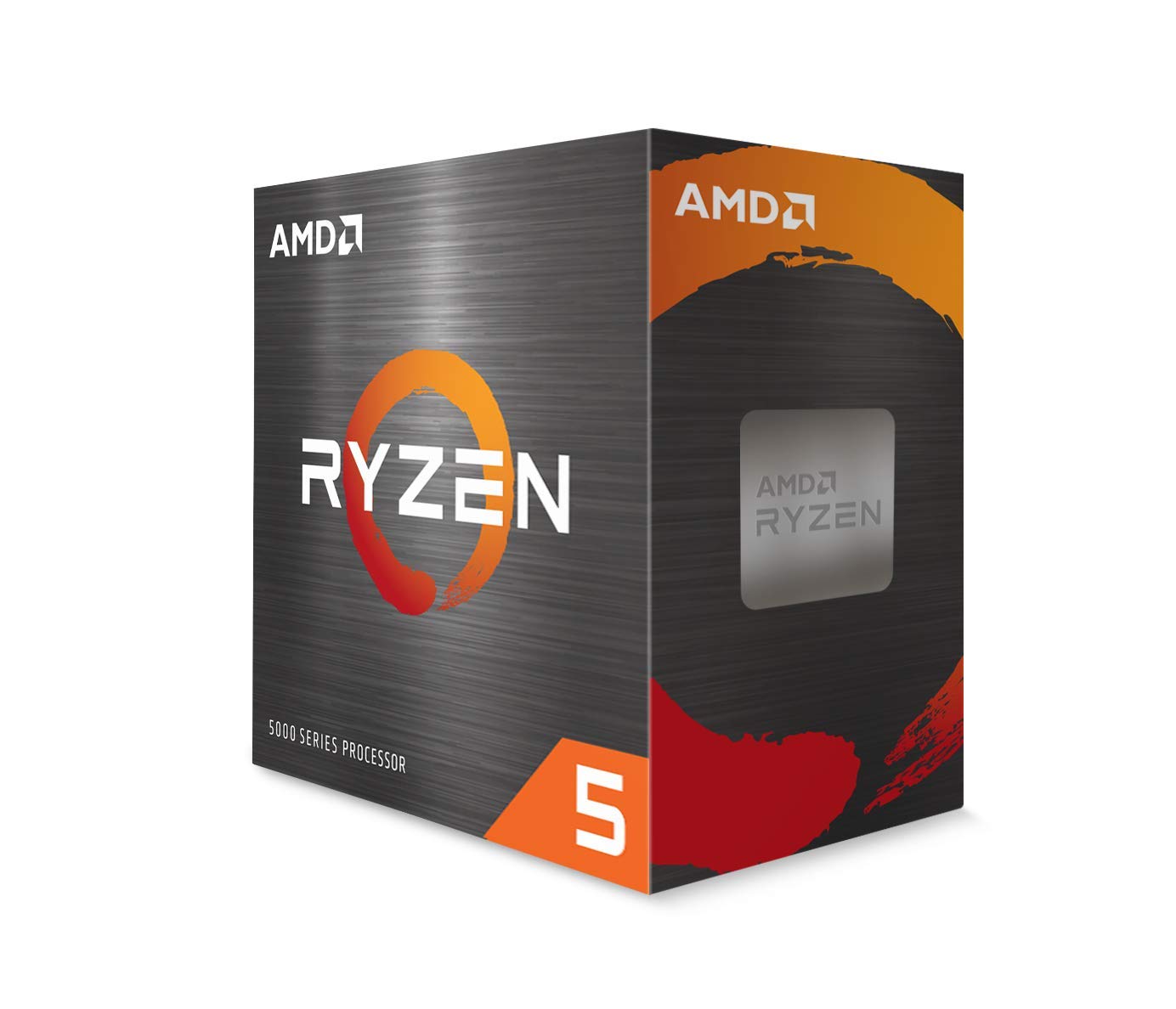

AMD Ryzen 5 5600G AM4 CPU, 6-Core/12 Threads UNLOCKED, Max

Description

AMD Ryzen 5 5600G AM4 CPU, 6-Core/12 Threads UNLOCKED, Max Freq 4.4GHz, 19MB Cache, 65W, Radeon Graphics+ Wraith Spire (AMDCPU) (RYZEN5000)(AMDBOX)

AMD Ryzen™ 5 5600G
General Specifications
Platform
Boxed Processor
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
# of CPU Cores
6
# of Threads
12
Max. Boost Clock
Up to 4.4GHz
Base Clock
3.9GHz
Total L2 Cache
3MB
Total L3 Cache
16MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM4
Thermal Solution (PIB)
Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Launch Date
4/13/2021
*OS Support
Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version
PCIe® 3.0
System Memory Type
DDR4
Memory Channels
2
System Memory Specification
Up to 3200MHz
Graphics Capabilities
Graphics Model
Radeon™ Graphics
Graphics Core Count
7
Graphics Frequency
1900 MHz
Product IDs
Product ID Boxed
100-100000252BOX
Product ID Tray
100-000000252
Product ID MPK
100-100000252MPK
