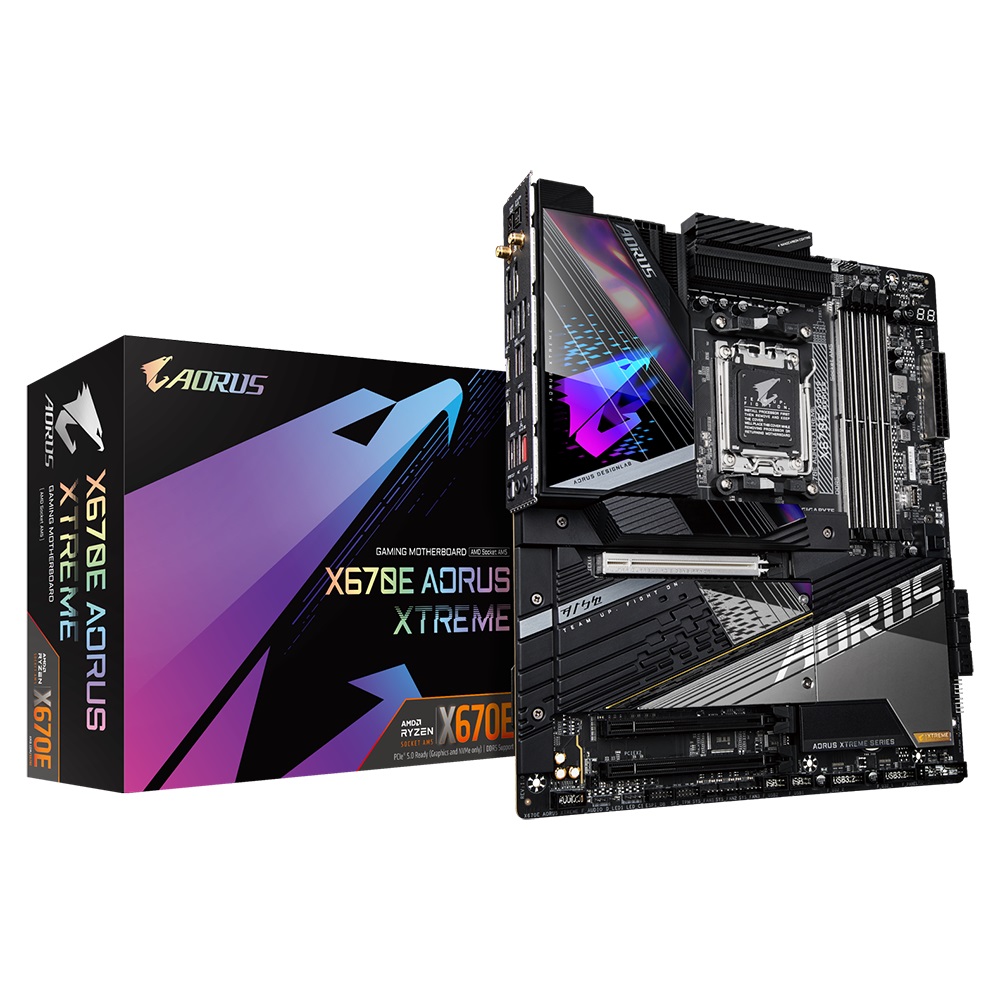

Gigabyte X670E AORUS XTREME AMD AM5 ATX Motherboard 4x DDR5~128GB,3x

Description

Gigabyte X670E AORUS XTREME AMD AM5 ATX Motherboard 4x DDR5~128GB,3x PCIe x16, 4x M.2, 6x SATA 6, 6x USB 3.2, 2x USB-C, 4x USB 2.0

CPU
AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors

Chipset
AMD X670

Memory
Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
* Actual support may vary by CPU.
* The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

USB
CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel

Form Factor
E-ATX Form Factor; 30.5cm x 26.9cm
