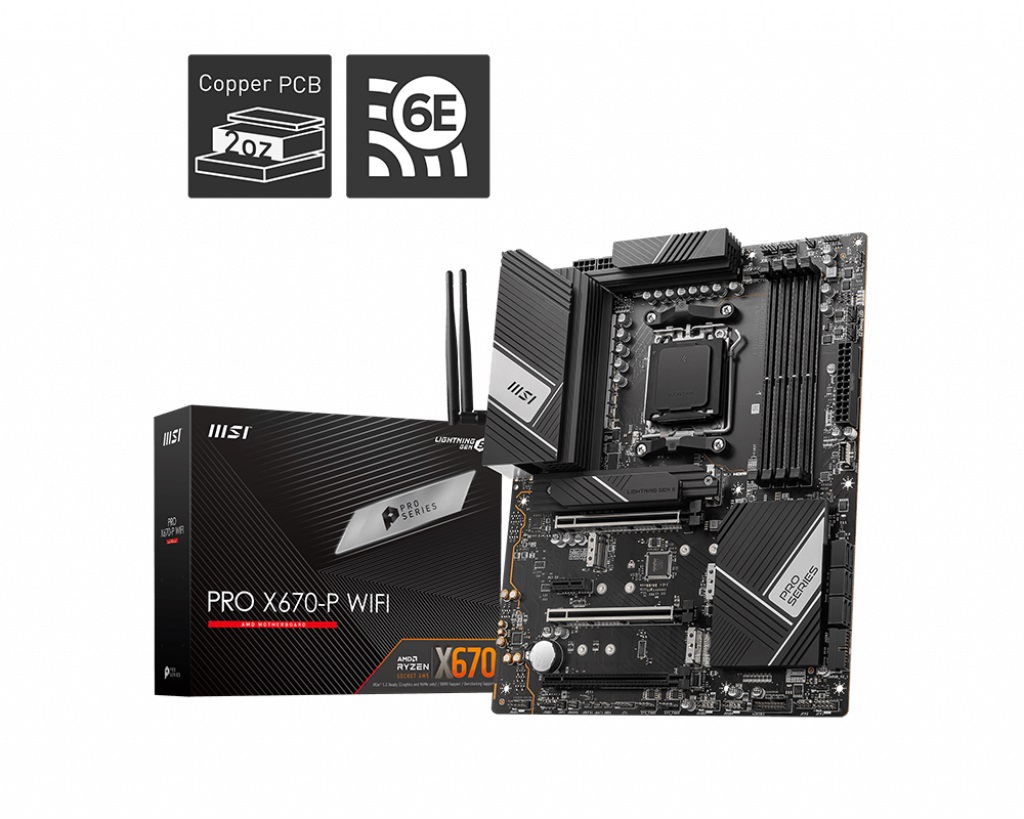

MSI PRO X670-P WIFI AMD AM5 ATX Motherboard, 4x DDR5

Description

MSI PRO X670-P WIFI AMD AM5 ATX Motherboard, 4x DDR5 ~128GB, 3x PCI-E x16, 1x PCI-E x1, 4x M.2, 6x SATA, 4x USB2.0, 13x USB 3.2

Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

CHIPSET:AMD X670
CPU Supports: AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY:4x DDR5, Maximum Memory Capacity 128GB
ONBOARD GRAPHICS:1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz*
1x Display Port
Supports DP1.4, maximum resolution of 4K 60Hz*
1x Type-C Display port
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*

EXPANSION SLOT :3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
Storage:
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
